Souverän 57 Ch= 774

• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1956/1957

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 20868

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 20

• Valves / Tubes
• PCC84 PCF80 EF80 EF80 EF80 EF80 PL83 EF80 EF80 EF80 ECC82 PCL82 ECH81 PL36 PY81 DY86 EF80 PABC80 PL82 MW53-80

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Souverän 57 Ch= 774 - Nordmende, Norddeutsche Mende-

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 616 x 910 x 542 mm / 24.3 x 35.8 x 21.3 inch

• Notes
• Standgerät auf Rollen; VHF-Band I & III.

• Net weight (2.2 lb = 1 kg)
• 51 kg / 112 lb 5.4 oz (112.335 lb)

• Price in first year of sale
• 1,298.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1956/57

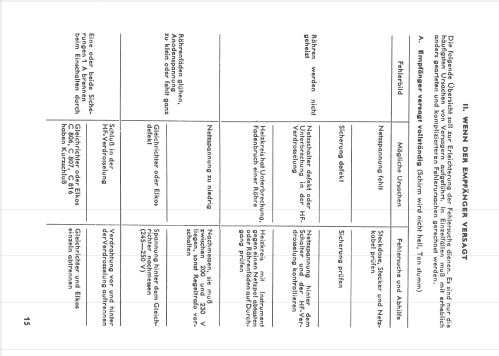

• Literature/Schematics (1)
• -- Original-techn. papers.
