• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1966/1967

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 112737

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• PCL86 PCL85 PC92 PL500 or PL504 PY88 DY86 or DY802 A59-11W or A59-12W

• Conflicting model year with tube data.
• The model date contradicts tube dates. [ DY802 (1967)]

• Number of Transistors
• 15

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: Souverän Electronic Ch= Uni 17 867.710.01 - Nordmende, Norddeutsche Mende-

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 700 x 490 x 400 mm / 27.6 x 19.3 x 15.7 inch

• Notes
• VHF/UHF. Auf Wunsch anschraubbare Beine.

• Net weight (2.2 lb = 1 kg)
• 31 kg / 68 lb 4.5 oz (68.282 lb)

• Source of data
• Handbuch VDRG 1966/1967

• Literature/Schematics (1)

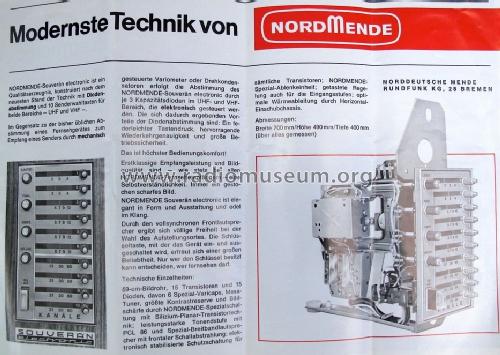

• -- Original-techn. papers.

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
