• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1968–1970

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 27332

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 25

• Semiconductors
• AF106 AF121 AF125 AF137 BFY39 BC139 AC151 AD161 AD162 AC122 AD150 AA112 AA118 AA119 BA111 SiG0,5/50R ZD15 ZD24 Si-Br-Gl

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 10 cm = 3.9 inch

• Material
• Wooden case

• from Radiomuseum.org

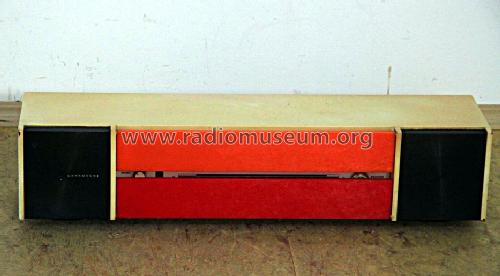

• Model: Spectra-Futura S 969.130.A Ch= 9.130.A - Nordmende, Norddeutsche Mende-

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 848 x 200 x 200 mm / 33.4 x 7.9 x 7.9 inch

• Notes
• Ch= 769.130A

  UKW: 87,5 - 104 MHz
  KW: 5950 - 6240 kHz
  MW: 515 - 1650 kHz
  LW: 140 - 360 kHz

  Halbleiter teils mehrfach vorhanden

  Vollstereo, NF-Verstärker mit zwei Endstufen je 7 W.

• Net weight (2.2 lb = 1 kg)
• 10.8 kg / 23 lb 12.6 oz (23.789 lb)

• External source of data
• erb

• Source of data
• Handbuch VDRG 1968/1969

• Literature/Schematics (1)
• -- Original-techn. papers.
