• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1968 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 357706

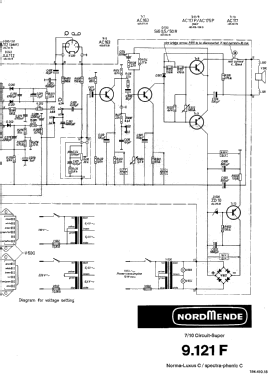

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• AF106 AF135 AF126 AF126 AF126 AC163 AC163 AC117 AC175 AC117 AA112 AA112 AA112 ZD10 SiG0,5/50R B30C350

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

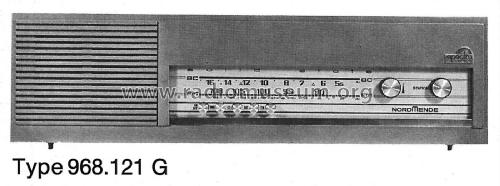

• Model: Spectra-Phonic C 968.121G - Nordmende, Norddeutsche Mende-

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 567 x 167 x 146 mm / 22.3 x 6.6 x 5.7 inch

• Mentioned in
• - - Manufacturers Literature

• Author
• Model page created by José Manuel Silvestre. See "Data change" for further contributors.
