• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1983

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 197273

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Batteries / addl. power jack / 2 x 1,5 Volt

• Loudspeaker
• - For headphones or amp.

• Power out
• 0.04 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

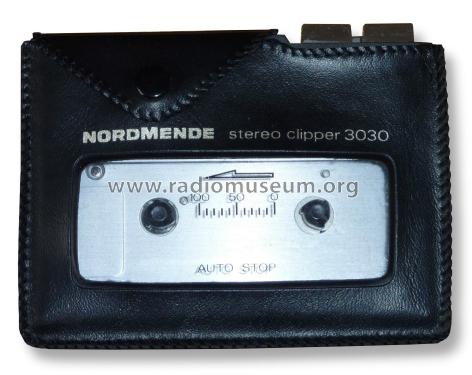

• Model: Stereo Clipper 3030 - Nordmende, Norddeutsche Mende-

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 109 x 80 x 31 mm / 4.3 x 3.1 x 1.2 inch

• Notes
• Mini-Stereocorder für bespielte Stereo-Cassetten.
  Abschaltautomatik bei Wiedergabe; Schalter für alle Bandsorten; Tragetasche und Schulterriemen.
  Anschlüsse: 2 Stereo-Kopfhörer, 3-V-Netzteil.

• Net weight (2.2 lb = 1 kg)
• 0.240 kg / 0 lb 8.5 oz (0.529 lb)

• Literature/Schematics (1)
• - - Manufacturers Literature

• Author
• Model page created by Hans-Friedrich Völkening † 22.3.16. See "Data change" for further contributors.
