• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1971–1974

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 28764

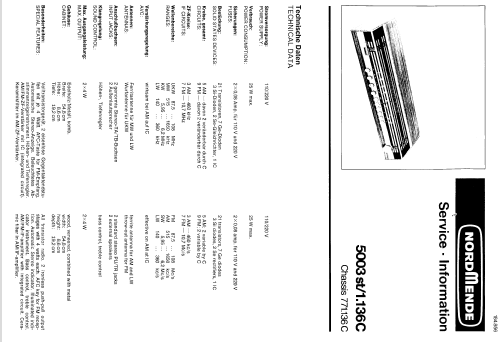

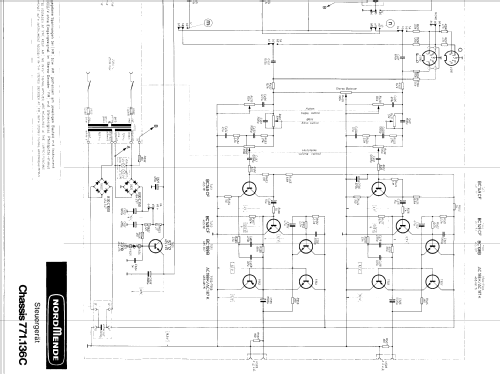

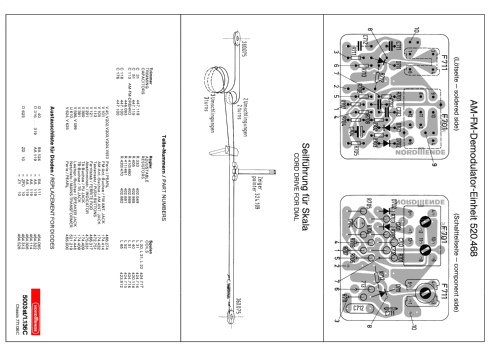

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 21

• Semiconductors
• AF106 BF343 BF240 BF241 BFY39IV BC108 BC148 BC149 AC187 AC188 TAA981 BA124 BA170 AA112 AA119 BA170 ZD10 Si-Br-Gl

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org
• Model: Stereo-Steuergerät 5003 st/1.136C 971.136C Ch= 771.136C - Nordmende, Norddeutsche Mende-

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 548 x 86 x 192 mm / 21.6 x 3.4 x 7.6 inch

• Notes
• Halbleiter teils mehrfach vorhanden

  UKW: 87,5 - 108 MHz
  KW: 5950 - 6200 kHz
  MW: 515 - 1650 kHz
  LW: 140 - 360 kHz

  Vollstereo, NF-Verstärker mit zwei Endstufen je 4 W (Sinus).

• Net weight (2.2 lb = 1 kg)
• 3.5 kg / 7 lb 11.3 oz (7.709 lb)

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1971/1972

• Literature/Schematics (1)
• -- Original-techn. papers.

• Other Models

• Here you find 1755 models, 1644 with images and 1273 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
