• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1973 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 181765

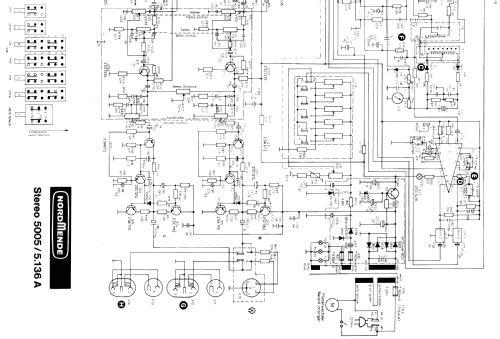

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

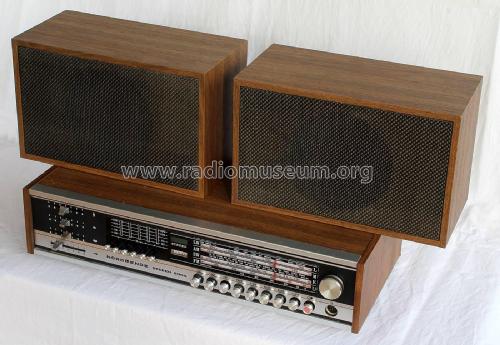

• Model: Stereo Steuergerät 5005 975.136A - Nordmende, Norddeutsche Mende-

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 500 x 115 x 230 mm / 19.7 x 4.5 x 9.1 inch

• Notes
• Receiver mit 5 Sender-Stationstasten.

• Net weight (2.2 lb = 1 kg)
• 4.7 kg / 10 lb 5.6 oz (10.352 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Guido Höh. See "Data change" for further contributors.
