• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1962/1963 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 354297

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM84 EBC81 EL84 EL84

• Number of Transistors

• Semiconductors
• Selenium-Rectifier

• Main principle
• Superheterodyne (common); Export model

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, 2 Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

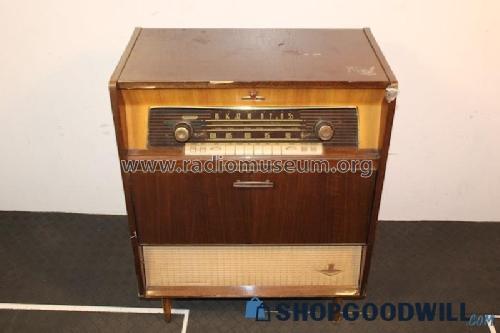

• Model: Sterling Caruso Stereo Ch= 2/616 US - Nordmende, Norddeutsche Mende-

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 24.5 x 31.5 x 15 inch / 622 x 800 x 381 mm

• Notes

• The Nordmende Sterling model Caruso 2/616 US Stereo is the export version of the domestic Nordmende Caruso-Stereo 2/616 for 1962-1963.

  Speakers are 2 each of 6 inch and 4 inch.

• Author
• Model page created by Rob Johnson. See "Data change" for further contributors.
