• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1973–1975

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 29263

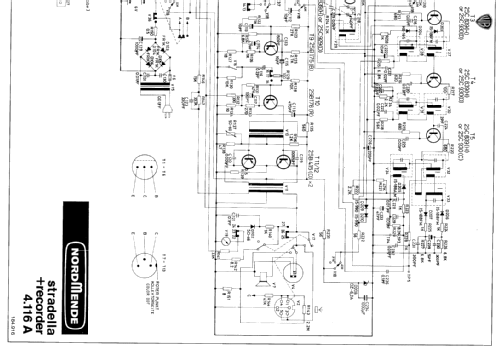

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 13

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220 / 4 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1.3 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

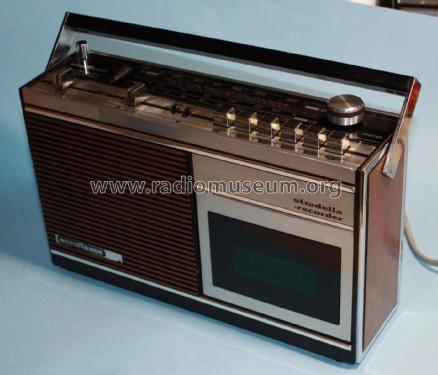

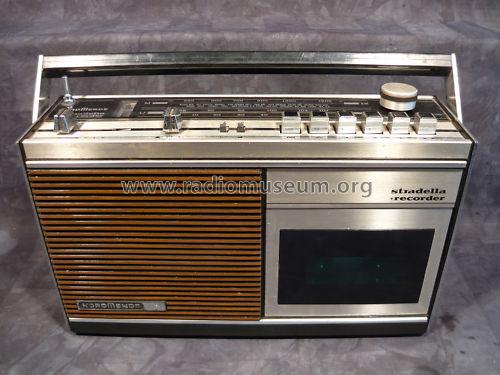

• Model: Stradella + Recorder 4.116A - Nordmende, Norddeutsche Mende-

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 300 x 180 x 90 mm / 11.8 x 7.1 x 3.5 inch

• Notes
• Ausgangsleistung bei Netzbetrieb = 1,6 W.

• Net weight (2.2 lb = 1 kg)
• 3.1 kg / 6 lb 13.3 oz (6.828 lb)

• External source of data
• Erb

• Source of data
• Katalog RFP 1973

• Mentioned in
• Katalog RFP 1974

• Literature/Schematics (1)
• -- Original-techn. papers.
