• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1965 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 164573

• Number of Tubes
• 12

• Valves / Tubes
• ECC85 ECH81 EF89 EBF89 EMM803 EF80 ECC808 ECC808 ECC82 ELL80 ELL80 ECC81

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 8 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, 2 Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• 6 Loudspeakers

• Power out
• 17 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

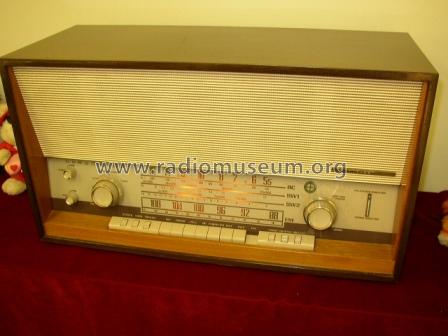

• Model: Tannhäuser C 7004 - Nordmende, Norddeutsche Mende-

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 25.7 x 14.5 x 10.7 inch / 653 x 368 x 272 mm

• Notes

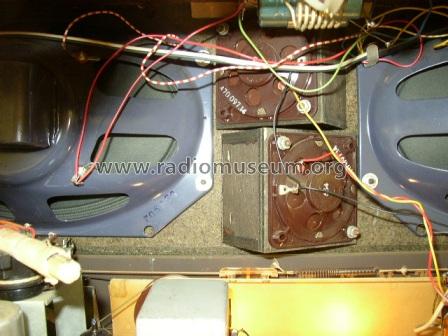

• This Nordmende model Tannhäuser C 7004 is an export model with 88-108 stereo FM band, additional SW band from 41-120 m, 2 additional electrostatic speakers and FM stereo decoder installed. 8.5 W output per channel. Diodes: BA110, 11x OA81 2x OA79.

• Net weight (2.2 lb = 1 kg)
• 33.05 lb (33 lb 0.8 oz) / 15.005 kg

• Author
• Model page created by Leo Van Houten † 2013. See "Data change" for further contributors.
