• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1964/1965

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 193164

• Number of Tubes
• 8

• Valves / Tubes

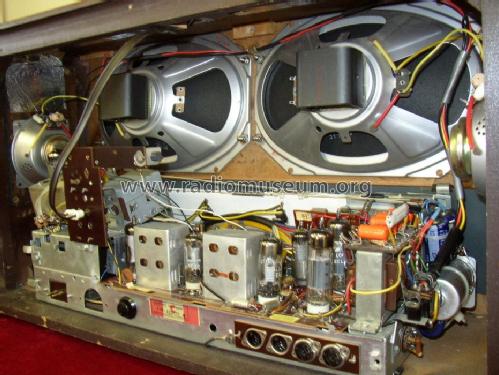

• ECC85 ECH81 EF89 EABC80 EMM803 EBC81 ECLL800 ECLL800

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, 2 Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles 110 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

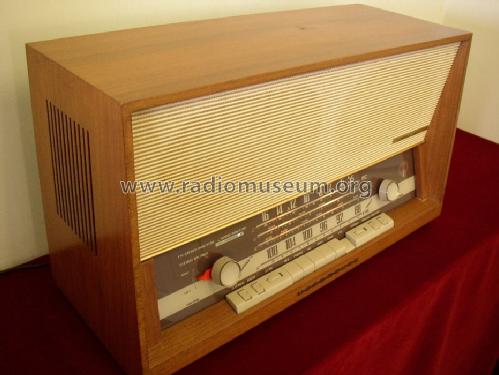

• Model: Tannhäuser Caruso Special C F758 - Nordmende, Norddeutsche Mende-

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 570 x 335 x 255 mm / 22.4 x 13.2 x 10 inch

• Notes

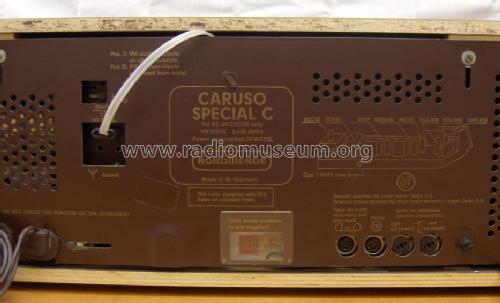

• This Nordmende export model "Tannhäuser Caruso Special C" is for AC 60 cycles 110 volt only. We don't know if it was also available with a built in Stereodecoder which would add an ECC81. It consumes 70 watts and has a fuse of 0.630 Amps (plus a fuse 1 Amp slow blow?). This model was at least in Canada on the market. There is a big similarity to the domestic Tannhäuser F330. So we believe it has the same size - which can also be measured as 23.5" x 13.5" x 9.5".

• Net weight (2.2 lb = 1 kg)
• 12.2 kg / 26 lb 14 oz (26.872 lb)

• External source of data
• Leo van Houten

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
