Tannhäuser C/US Ch= 1/633 C
Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
- Country
- Germany
- Manufacturer / Brand
- Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
- Year
- 1960/1961
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 230944

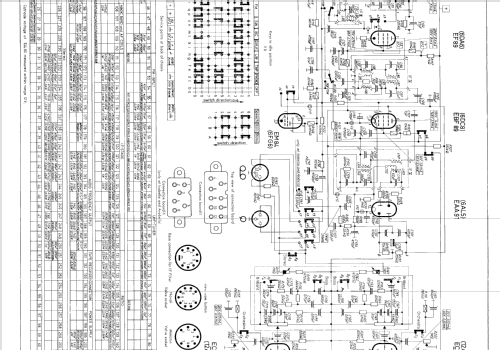

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 11
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz; Export model
- Tuned circuits
- 10 AM circuit(s) 13 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110 ;120; 150; 220; 240 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Tannhäuser C/US Ch= 1/633 C - Nordmende, Norddeutsche Mende-
- Shape
- Tablemodel with Push Buttons.
- Notes
-
Nordmende Tannhäuser C/US Stereo Ch= 1/633C ist ein Exportmodell für die USA.
UKW/FM 88 - 108 MHz.Siehe auch das inländische Modell Tannhäuser Stereo E330 Ch= 1/633
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Richard Winter. See "Data change" for further contributors.
