Tannhäuser-Stereo F330 Ch= 5/633

• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1964/1965

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 25685

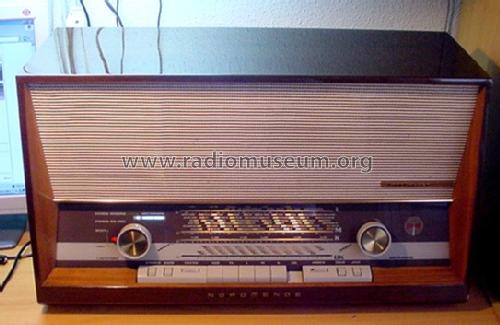

• Picture

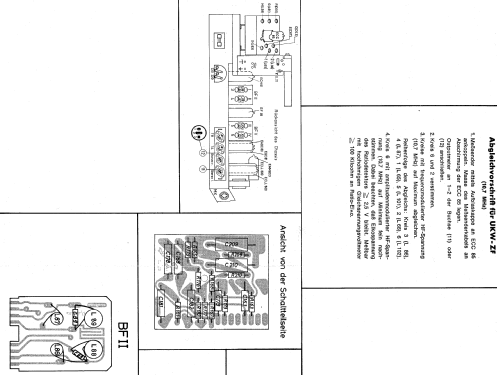

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EMM803 EBC81 ECLL800 ECLL800 ECC81

• Number of Transistors
• 1

• Semiconductors
• AF117

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110/220 Volt

• Loudspeaker
• 4 Loudspeakers

• Power out
• 11 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Tannhäuser-Stereo F330 Ch= 5/633 - Nordmende, Norddeutsche Mende-

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 600 x 345 x 245 mm / 23.6 x 13.6 x 9.6 inch

• Notes
• Stereo-Decoder eingebaut; mit 8 Dioden OA81, 1 Diode OA81.

• Net weight (2.2 lb = 1 kg)
• 11 kg / 24 lb 3.7 oz (24.229 lb)

• Price in first year of sale
• 676.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1964/1965
