• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1968

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 264535

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 4

• Semiconductors

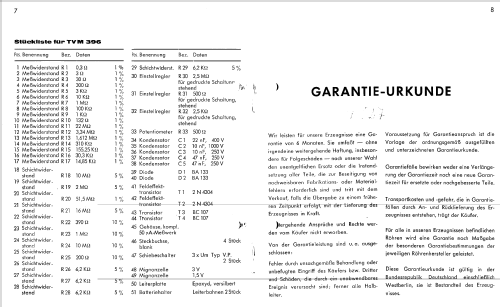

• 2N4304 BC107 BC107 2N4304 BA133 BA133

• Wave bands
• - without

• Power type and voltage
• Dry Batteries / 1,5 / 3 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

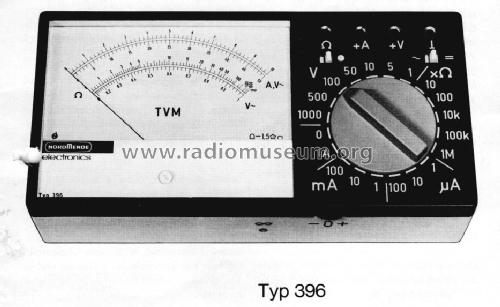

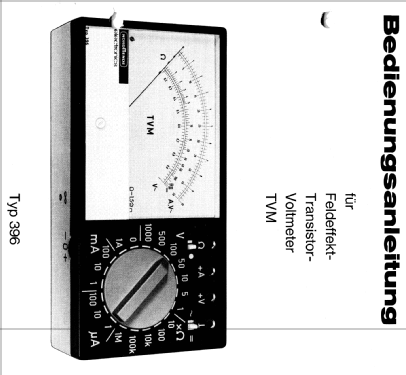

• Model: Transistor-Voltmeter TVM 396 - Nordmende, Norddeutsche Mende-

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 185 x 90 x 40 mm / 7.3 x 3.5 x 1.6 inch

• Notes

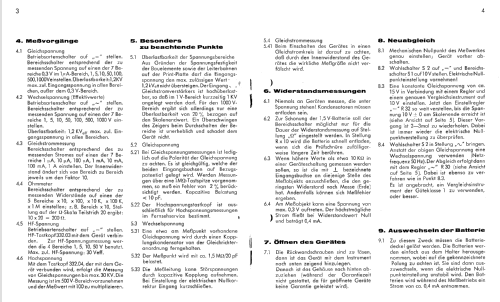

• Hochohmiges Transistor-Voltmeter,

  Gleichspannung      : 1/5/10/50/100/500/1000V,

  Wechselspannung   : 1/5/10/50/100/500/1000V, 20Hz-5MHz,

  Gleichstrom            : 1µA/10µA/100µA/1mA/10mA/100mA/1A,

  Widerstand             : 10Ω/100Ω/1KΩ/100KΩ/1MΩ.



• Net weight (2.2 lb = 1 kg)
• 0.6 kg / 1 lb 5.1 oz (1.322 lb)

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)
• -- Original prospect or advert (Nordmende Messgerätekatalog 1968/69)

• Literature/Schematics (2)
• Funk-Technik (FT) (9/1968, S. 339, 340 / Beschreibung, Daten, Schema)

• Author
• Model page created by a member from D. See "Data change" for further contributors.

• Other Models

• Here you find 1759 models, 1648 with images and 1278 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
