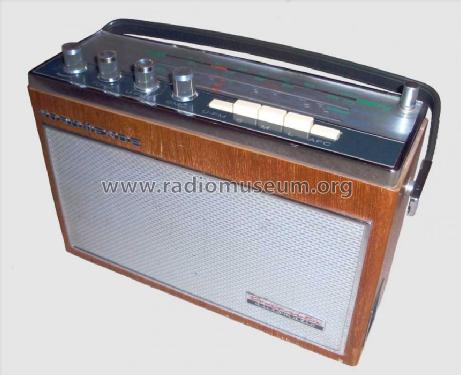

Transita Automatic 49m V033 Ch= 4/603KL49m helle Skala

• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1965/1966

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 230166

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• AF106 AF125 AF126 AF126 AF126 AF137 AC162 AC162 AC153 AC153

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     13 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Batteries / addl. power jack / 5 × 1,5 / 7,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch

• Material
• Special material, described in the notes.

• from Radiomuseum.org
• Model: Transita Automatic 49m V033 Ch= 4/603KL49m [helle Skala] - Nordmende, Norddeutsche Mende-

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 273 x 184 x 94 mm / 10.7 x 7.2 x 3.7 inch

• Notes

• Zweite Ausführung des Transita Automatic 49m Jahrgang 1965/66. Merkmale:

  • Helle Skala
  • Helle Tasten
  • Dunkle Tasteneinfassung
  • Typschild zeigt Transita Automatic 49m V033
  • 4 Ausführungen: Holzgehäuse teak, Holz mit Kunstlederbezug bordeauxrot, kaviar oder tabak

  Das Vorgängermodell Transita Automatic 49m des Jahrgangs 1964/65 hat eine dunkle Skala, dunkle Tasten und eine helle Tasteneinfassung.

• Net weight (2.2 lb = 1 kg)
• 3.280 kg / 7 lb 3.6 oz (7.225 lb)

• Source of data
• Handbuch VDRG 1965/1966
