Transita K de Luxe (UMK) Z031 Ch= 3/603K

• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1963/1964

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 7700

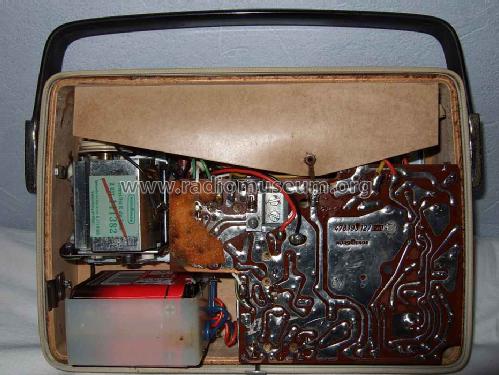

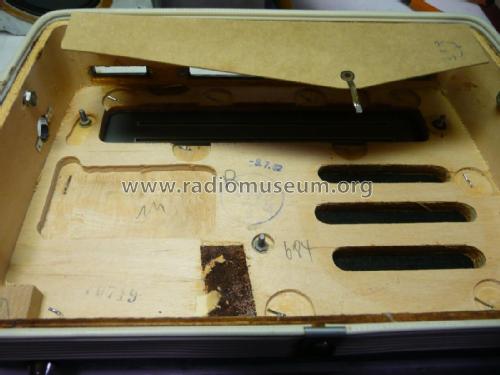

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• AF106 OC615 OC614 AF105 AF105 OC75 OC71 OC74 OC74 OA160 AA112 AA112

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Dry Batteries / 2 × 4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 1 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Transita K de Luxe Z031 Ch= 3/603K - Nordmende, Norddeutsche Mende-

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 240 x 170 x 80 mm / 9.4 x 6.7 x 3.1 inch

• Notes

• UKW: 86,7 - 104,5 MHz
  MW: 515 - 1650 kHz
  KW: 5900 - 12500 kHz

  5 Farben: bordeauxrot, deltagrün, golfblau, schwarz oder cubanaweiß.

• Net weight (2.2 lb = 1 kg)
• 2.1 kg / 4 lb 10 oz (4.626 lb)

• Price in first year of sale
• 248.00 DM

• Source of data
• Handbuch VDRG 1963/1964 / Radiokatalog Band 1, Ernst Erb
