Transita-Royal Ch= 4/608 LW, MW, UKW
Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
- Country
- Germany
- Manufacturer / Brand
- Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
- Year
- 1965/1966
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 7674

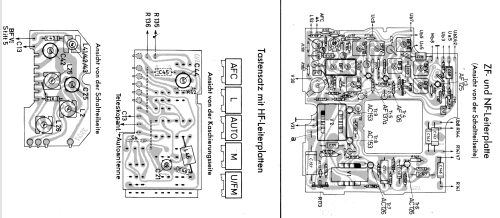

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 9
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Dry Batteries / 5 × 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Power out
- 1 W (unknown quality)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Transita-Royal Ch= 4/608 [LW, MW, UKW] - Nordmende, Norddeutsche Mende-
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 270 x 170 x 77 mm / 10.6 x 6.7 x 3 inch
- Notes
- Stabis: 1,4ST10, 2,8St10
Betrieb im Auto über Autohalterung (792.015.29) aus 6-V- oder 12-V-Autobatterie möglich.
Netzbetrieb mit zusätzlichem Netzteil möglich.
- Net weight (2.2 lb = 1 kg)
- 2.2 kg / 4 lb 13.5 oz (4.846 lb)
- Source of data
- Handbuch VDRG 1965/1966 / Radiokatalog Band 1, Ernst Erb
- Literature/Schematics (1)
- -- Original-techn. papers.
