Transita-Spezial K I031 Ch= 7/603K

• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1966/1967

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 113139

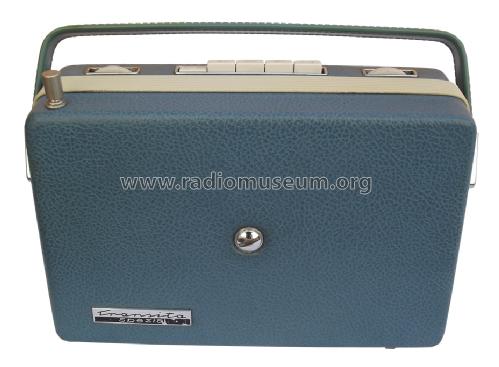

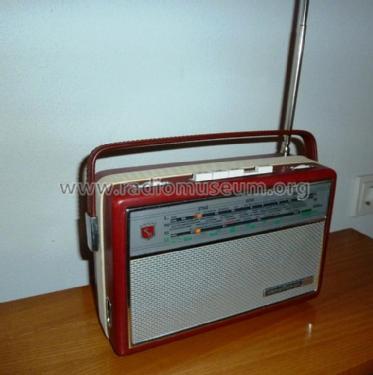

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• AF106 AF135 AF136 AF138 AF138 AC162 AC162 AC152 AC152 AA112 AA112 AA112

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Dry Batteries / 2 × 4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 1 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Transita-Spezial K I031 Ch= 7/603K - Nordmende, Norddeutsche Mende-

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 252 x 168 x 82 mm / 9.9 x 6.6 x 3.2 inch

• Notes

• UKW: 87 - 104 MHZ
  MW: 515 - 1650 kHz
  LW: 145 - 260 kHz
  KW: 5900 - 12500 kHz

  4 Farben: bordeauxrot, farn, golfblau oder schwarz.

• Net weight (2.2 lb = 1 kg)
• 2.1 kg / 4 lb 10 oz (4.626 lb)

• Source of data
• Handbuch VDRG 1966/1967

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
