• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1965/1966

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 111711

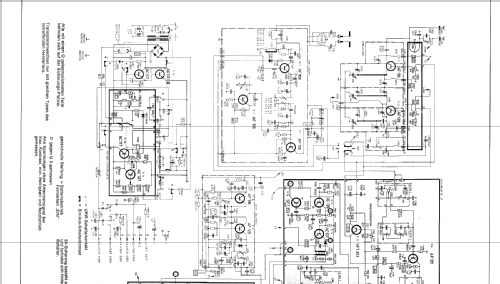

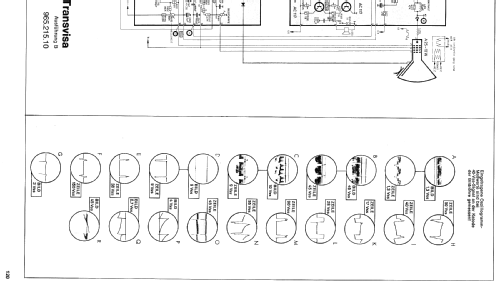

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• A25-10W

• Number of Transistors
• 35

• Semiconductors
• AF139 AF109 AF106 AF125 AF121 AF126 AF118 OC139 SFT353 AC117 AF190 AD132 OC430 OC44 AC127 SE6001 AU101 AY101 AD131 OA90 1N54A AA118 V40C2 AA112 SZ9 SZ12 SZ5 SZ17 E45C50 E150C10 TV9 B30C2500

• Main principle
• Superhet with RF-stage; ZF/IF 38900/5500 kHz; 3 AF stage(s)

• Tuned circuits
• 9 FM circuit(s)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Line / Storage batteries (perhaps also batteries) / 220 / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

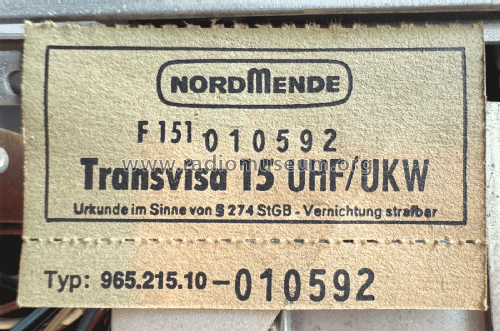

• Model: Transvisa 15 UHF/UKW Ch= 965.215.10 [Ausf. B] - Nordmende, Norddeutsche Mende-

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 265 x 230 x 290 mm / 10.4 x 9.1 x 11.4 inch

• Notes

• VHF/UHF. UKW-Radio. 12 V Akku einsetzbar, automatische Akku-Ladung bei Netzbetrieb, externe 12-V-Versorgung möglich.

  Siehe auch Nordmende Transvisa 15 Ausf. A mit leicht abweichender Halbleiterbestückung.

• Net weight (2.2 lb = 1 kg)
• 9.4 kg / 20 lb 11.3 oz (20.705 lb)

• Source of data
• Handbuch VDRG 1965/1966

• Mentioned in
• Handbuch RFP 1965/66 S.83 (Thiele)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
