Traviata-Stereo Ch= 6/675
Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
- Country
- Germany
- Manufacturer / Brand
- Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
- Year
- 1965/1966
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 26213

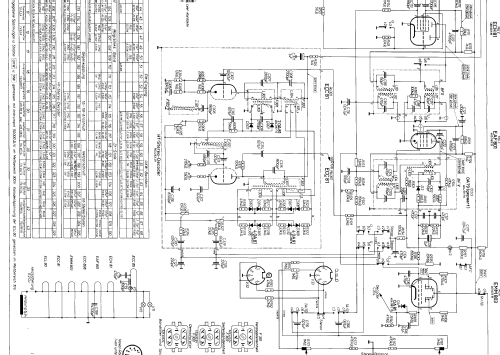

aus Serviceanleitung
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case

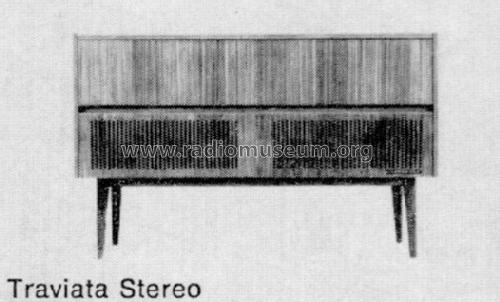

- from Radiomuseum.org
- Model: Traviata-Stereo Ch= 6/675 - Nordmende, Norddeutsche Mende-
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 1200 x 780 x 390 mm / 47.2 x 30.7 x 15.4 inch
- Notes
- Dioden: 2× OA79, 11× OA81.
Stereo-Decoder eingebaut, Stereo-NF-Verstärker mit 2 Endstufen je 3 W.
Phono-Chassis = Dual 1010.
- Net weight (2.2 lb = 1 kg)
- 45 kg / 99 lb 1.9 oz (99.119 lb)
- External source of data
- erb
- Source of data
- Handbuch VDRG 1965/1966
- Literature/Schematics (1)
- -- Original-techn. papers.
