• Year
  • 1965
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 239269

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 11
  • Number of Transistors
  • 6
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

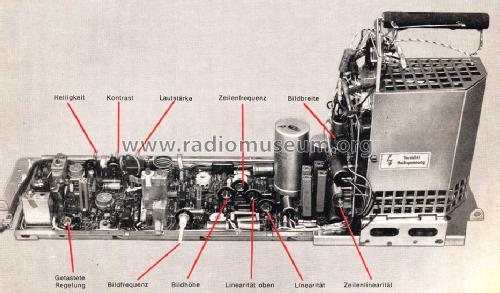

  • Model: TV6004 Ch= C15 - 865.723.00 - Nordmende, Norddeutsche Mende-
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 650 x 505 x 380 mm / 25.6 x 19.9 x 15 inch
  • Notes
  • 59 cm s/w TV mit CCIR B/G standard VHF/UHF Tuner.

    Siehe auch Hamlet Ch= C15.

  • Literature/Schematics (1)
  • -- Original-techn. papers.
