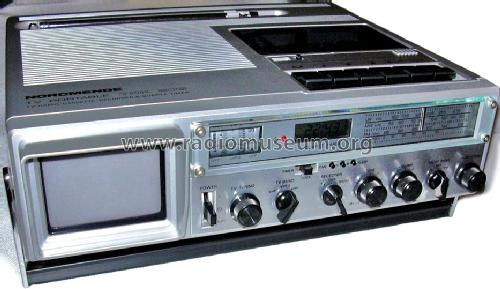

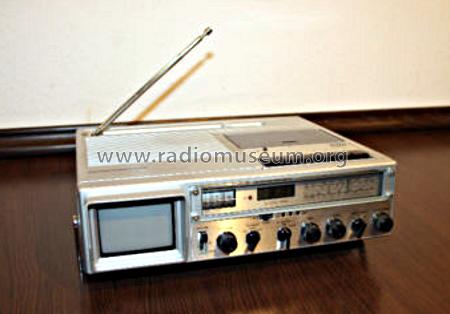

TV-Portable TRK 209 981.105H
Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
- Country
- Germany
- Manufacturer / Brand
- Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
- Year
- 1980 ??
- Category
- Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
- Radiomuseum.org ID
- 207806
- Number of Tubes
- 1
- Valves / Tubes
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line / Batteries (any type) / 220 / 6 x 1,5 & 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: TV-Portable TRK 209 981.105H - Nordmende, Norddeutsche Mende-
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 290 x 90 x 270 mm / 11.4 x 3.5 x 10.6 inch
- Notes
- Nordmende TV-Portable TRK 209
TV-Radio-Cassette-Recorder & Quartz Timer- Bildschirmdiagonale 7,3 cm schwarz/weiss
- Batterien:
- 6 x 1,5 V Mono
- 1 x 1,5 V Mignon für Uhr/Timer
- Leistungsaufnahme ca. 12 W
- Net weight (2.2 lb = 1 kg)
- 4 kg / 8 lb 13 oz (8.811 lb)
- Author
- Model page created by Hans-Friedrich Völkening † 22.3.16. See "Data change" for further contributors.
