• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1978/1979

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 162691

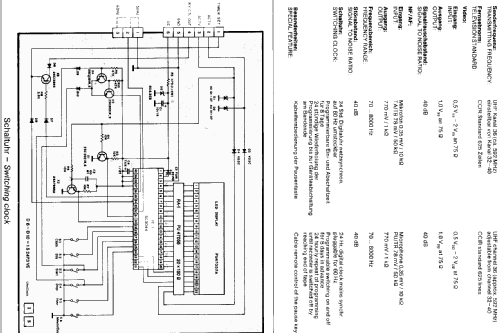

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Video-Taperecorder/-Player

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240; Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Various materials

• from Radiomuseum.org
• Model: Video Cassette Recorder Spectra Video-Vision VHS - Nordmende, Norddeutsche Mende-

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 451 x 147 x 337 mm / 17.8 x 5.8 x 13.3 inch

• Notes

• Nordmende Video-Vision Spectra VHS Video Cassette Recorder;

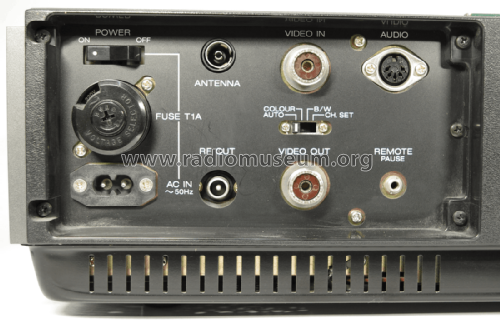

  System VHS, CCIR-PAL, mech. Laufwerksteuerung, Bandzählwerk, AV-Anschlüsse, Anschluss für Videokamera. Nachvertonungsschalter und Mikrofonanschluss.

  Fernsehabstimmeinheit für Band I, III sowie IV und V.

  Auflösung: Farbe 3 MHz -6 dB, s/w 3,6 MHz -6 dB

• Net weight (2.2 lb = 1 kg)
• 13.9 kg / 30 lb 9.9 oz (30.617 lb)

• Price in first year of sale
• 1,885.00 DM

• Source of data
• -- Original-techn. papers.

• Mentioned in
• D- Nordmende Programm-Illustrierte 79/80

• Author
• Model page created by a member from A. See "Data change" for further contributors.
