Vollmodul-Chassis F VI/90 777.510 A/C

• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1975 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 251579

• Picture

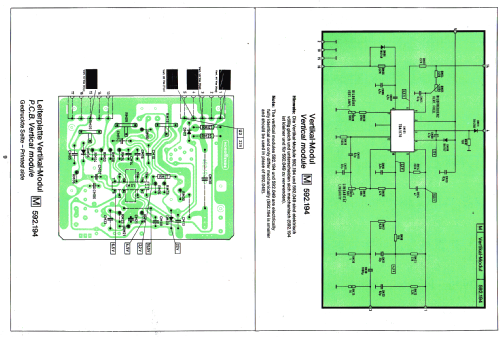

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Power out
• 2.5 W (undistorted)

• from Radiomuseum.org
• Model: Vollmodul-Chassis F VI/90 777.510 A/C - Nordmende, Norddeutsche Mende-

• Shape
• Chassis only or for «building in»

• Notes

• Volltransistorisiertes Farbfernseh-Chassis in Modultechnik.

  Wird z.B. eingesetzt in den Modellen
  Spectra Portable Color 3601 0.510 und
  Spectra Portable Color 4200 8.512
