• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1969 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 278169

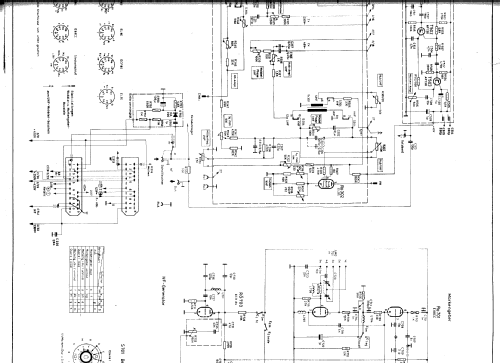

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 13

• Valves / Tubes
• ELL80 ECC83 ECF80 EL86 ECC88 EL95 ECL82 EC8010 EZ81 ECH84 E88CC E88CC DN10-14 STV85/8

• Number of Transistors
• 3

• Semiconductors
• AF136 AF136 AF136

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Material
• Metal case

• from Radiomuseum.org

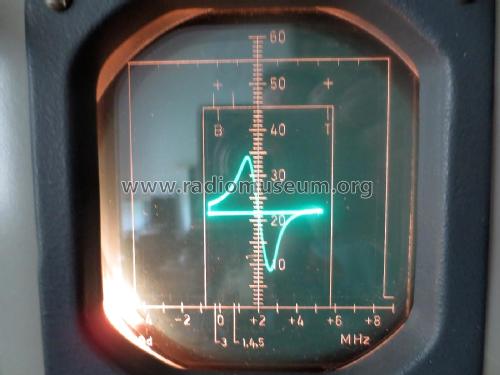

• Model: Universal-Wobbel-Meßplatz UWM346/U-6 - Nordmende, Norddeutsche Mende-

• Shape
• Boatanchor (heavy military or commercial set >20 kg).

• Dimensions (WHD)
• 480 x 340 x 360 mm / 18.9 x 13.4 x 14.2 inch

• Notes

• Das Gerät besteht aus dem Generator UWM346/U-6, dem Elektronenschalter und Quarzmarken-Einschub Typ 383.02 und dem Sichteinschub Typ 361.03.

• Author
• Model page created by Aldo Patriarca. See "Data change" for further contributors.

• Other Models

• Here you find 1757 models, 1646 with images and 1274 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
