• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1965 ??

• Category
• Radio module post 1925 (not a part, not a key)

• Radiomuseum.org ID
• 259133

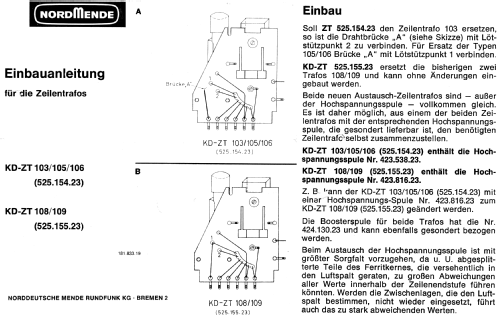

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• DY86

• Wave bands
• - without

• Power type and voltage
• Powered by external power supply or a main unit.

• Loudspeaker
• - - No sound reproduction output.

• Material
• TUBES VISIBLE, material not known.

• from Radiomuseum.org
• Model: Zeilentrafos KD-ZT 103/105/106 + KD-ZT 108/109 - Nordmende, Norddeutsche Mende-

• Shape
• Chassis only or for «building in»

• Author
• Model page created by Heribert Jung. See "Data change" for further contributors.

• Other Models

• Here you find 1757 models, 1646 with images and 1274 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
