ST-90

Noris (Marke), Leo Reichsthaler, Sommerhäuser & Friedrich; Nürnberg

Data
Forum
Pictures
Collections

  • Year
  • 1970 ??
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 358493

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 30 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: ST-90 - Noris Marke, Leo Reichsthaler,
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 330 x 110 x 290 mm / 13 x 4.3 x 11.4 inch
  • Notes

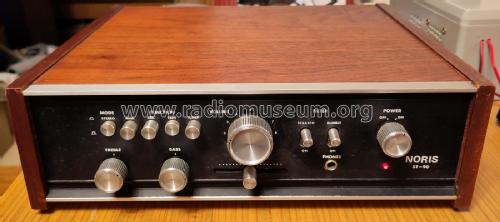

  • Noris Stereo-Verstärker ST-90,

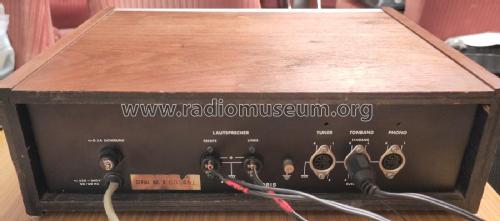

    Eingänge für

    • Phono Magnet
    • Phono Keramik
    • Tape
    • Tuner

    Rausch/Rumpelfilter, Mono/Stereo-Schalter, Kopfhörer-Ausgang 6,3 mm Klinke frontseitig.

    Die Platinen tragen die Bezeichnung/den Namen Cometro CA-2010 bzw. CA-222B.

  • Net weight (2.2 lb = 1 kg)
  • 4.5 kg / 9 lb 14.6 oz (9.912 lb)
  • Author
  • Model page created by Christian Hubatsch. See "Data change" for further contributors.
