• Country
• United States of America (USA)

• Manufacturer / Brand
• Norelco, North American Philips Co. Inc.; Dobbs Ferry and New York, NY

• Year
• 1959 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 139080

• • Brand: Norelco

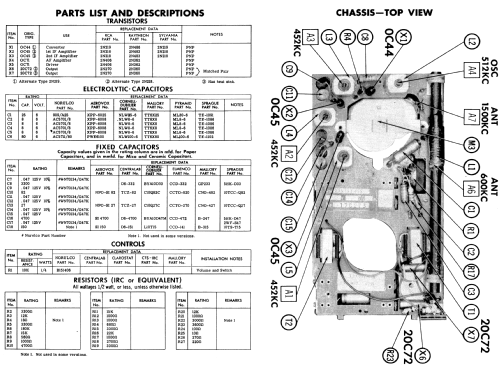

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• OC44 OC45 OC45 OC71 OC71 OC72 OC72

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 4 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: L1X75T /64R - Norelco, North American

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 510 folder 13 date 12-60)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.

• Other Models

• Here you find 76 models, 59 with images and 28 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
