• Country
• United States of America (USA)

• Manufacturer / Brand
• Norelco, North American Philips Co. Inc.; Dobbs Ferry and New York, NY

• Year
• 1959 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 139881

• • Brand: Norelco

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• OC170 OC45 OC45 OC71 OC71 OC72 OC72

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Dry Batteries / 6 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org
• Model: L3X86T - Norelco, North American

• Shape

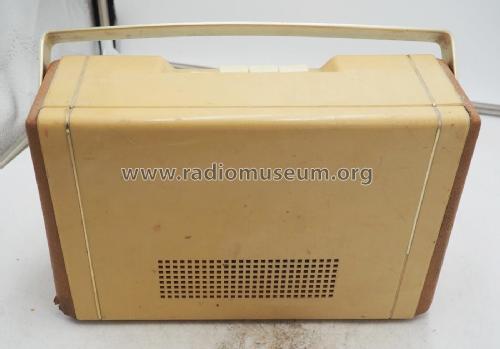

• Portable set > 8 inch (also usable without mains)

• Notes
• Battery operated transistorized portable BC - SW receiver.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 504 folder 17 date 10-60)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
