Norelco L4X98T /72
Norelco, North American Philips Co. Inc.; Dobbs Ferry and New York, NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- Norelco, North American Philips Co. Inc.; Dobbs Ferry and New York, NY
- Year
- 1960 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 231892
-
- Brand: Norelco
Paper label inside left side panel.

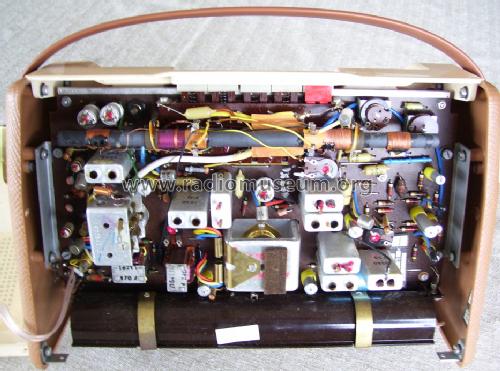

View of inside after back removed.
- Number of Transistors
- 9
- Main principle
- Superheterodyne (common); ZF/IF 452/10700 kHz
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Dry Batteries / 6 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.25 inch = 10.8 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Norelco L4X98T /72 - Norelco, North American
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 13 x 8 x 4 inch / 330 x 203 x 102 mm
- Notes
-
Made in Holland for the North American Philips Inc. (Norelco).
- Author
- Model page created by Myron White. See "Data change" for further contributors.
