• Year
  • 1964 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 177965

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 8
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 2 x 1.35 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 cm = 1.6 inch
  • Power out
  • 0.08 W (unknown quality)
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Midget Micro 8 Transistor - NAFT N.A.F.T. North American
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 50 x 50 x 24 mm / 2 x 2 x 0.9 inch
  • Notes

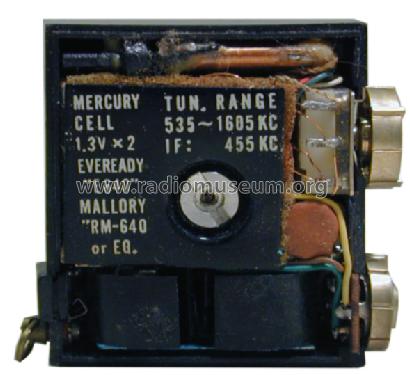

  • Northamerican Midget Micro 8 Transistor with keychain and earphone packed in hard box layed out in velvet. Weight incl. packing 250 g; batteries 2 x Mercury E-640. Speaker dimension 1 9/16".
  • Net weight (2.2 lb = 1 kg)
  • 0.1 kg / 0 lb 3.5 oz (0.22 lb)
  • Author
  • Model page created by Eckhard Wegner. See "Data change" for further contributors.
