• Year
  • 1968 ??
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 233551

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 6
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Tape Recorder
  • Power type and voltage
  • Dry Batteries / C: 2 x 1.5 & 1 x 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.7 cm = 2.2 inch
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 6 Transistor Tape Recorder N-678 - NAFT N.A.F.T. North American
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 205 x 170 x 75 mm / 8.1 x 6.7 x 3 inch
  • Notes

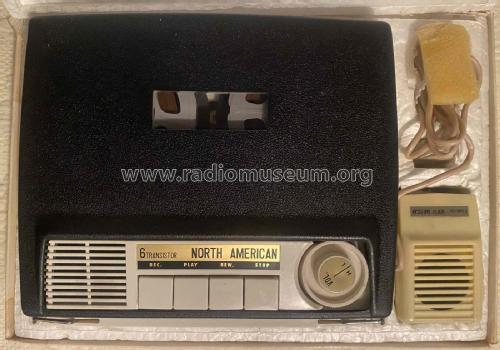

  • North American Portable 6 Transistor Tape Recorder Model N-678.

    Made in Japan

  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
