Baby Champ 5000 brown

Northern Electric Co. Ltd.; Montreal, QC ; Belleville, ON

Data

Forum

Pictures

Collections

Country
Canada

Manufacturer / Brand
Northern Electric Co. Ltd.; Montreal, QC ; Belleville, ON

Year
1946/1947

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
97115

Schematics

Baby Champ 5000; Northern Electric Co (ID = 479589) Radio — Northern Electric Co Baby Champ 5000 (3)

Baby Champ 5000; Northern Electric Co (ID = 769047) Radio — Northern Electric Co Baby Champ 5000 (3)

Baby Champ 5000; Northern Electric Co (ID = 769048) Radio — Northern Electric Co Baby Champ 5000 (3)

Baby Champ 5000; Northern Electric Co (ID = 2892579) Radio — Northern Electric Co Baby Champ 5000 (1)

Baby Champ 5000; Northern Electric Co (ID = 2892581) Radio — Northern Electric Co Baby Champ 5000 (1)

Baby Champ 5000; Northern Electric Co (ID = 2892580) Radio — Northern Electric Co Baby Champ 5000 (1)

Baby Champ 5000; Northern Electric Co (ID = 2892577) Radio — Northern Electric Co Baby Champ 5000 (1)

Baby Champ 5000; Northern Electric Co (ID = 2892578) Radio — Northern Electric Co Baby Champ 5000 (1)

Baby Champ 5000; Northern Electric Co (ID = 2892582) Radio — Northern Electric Co Baby Champ 5000 (1)

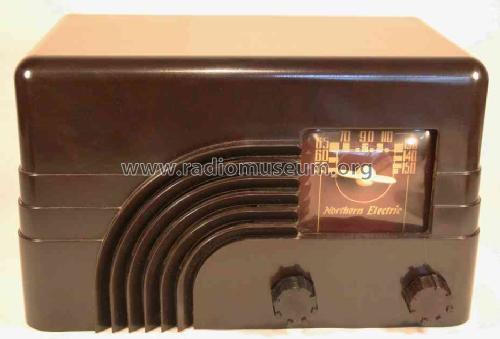

Baby Champ 5000; Northern Electric Co (ID = 492067) Radio — Northern Electric Co Baby Champ 5000 (1)

Baby Champ 5000; Northern Electric Co (ID = 492068) Radio — Northern Electric Co Baby Champ 5000 (1)

Baby Champ 5000; Northern Electric Co (ID = 267151) Radio — Northern Electric Co Baby Champ 5000 (2)
By courtesy of William Kendrick, USA

Baby Champ 5000; Northern Electric Co (ID = 605609) Radio — Northern Electric Co Baby Champ 5000 (1)

Baby Champ 5000; Northern Electric Co (ID = 869139) Radio — Northern Electric Co Baby Champ 5000 (2)

Baby Champ 5000; Northern Electric Co (ID = 1114450) Radio — Northern Electric Co Baby Champ 5000 (1)
Bought from Quebec, Sept.2011

Baby Champ 5000; Northern Electric Co (ID = 1114451) Radio — Northern Electric Co Baby Champ 5000 (1)

Baby Champ 5000; Northern Electric Co (ID = 1114452) Radio — Northern Electric Co Baby Champ 5000 (1)

Baby Champ 5000; Northern Electric Co (ID = 1114453) Radio — Northern Electric Co Baby Champ 5000 (1)

Baby Champ 5000; Northern Electric Co (ID = 1177802) Radio — Northern Electric Co Baby Champ 5000 (1)

Baby Champ 5000; Northern Electric Co (ID = 1204577) Radio — Northern Electric Co Baby Champ 5000 (1)

Baby Champ 5000; Northern Electric Co (ID = 1204578) Radio — Northern Electric Co Baby Champ 5000 (1)
this is the chassis of the model 5000

Baby Champ 5000; Northern Electric Co (ID = 1204579) Radio — Northern Electric Co Baby Champ 5000 (1)

Baby Champ 5000; Northern Electric Co (ID = 1219406) Radio — Northern Electric Co Baby Champ 5000 (2)
Ebay Seller radios10467 Item 140738916344

Baby Champ 5000; Northern Electric Co (ID = 1219408) Radio — Northern Electric Co Baby Champ 5000 (2)
Ebay Seller radios10467 Item 140738916344

Baby Champ 5000; Northern Electric Co (ID = 1219410) Radio — Northern Electric Co Baby Champ 5000 (2)
Ebay Seller radios10467 Item 140738916344

Baby Champ 5000; Northern Electric Co (ID = 1219414) Radio — Northern Electric Co Baby Champ 5000 (2)
Ebay Seller radios10467 Item 140738916344

Baby Champ 5000; Northern Electric Co (ID = 1219415) Radio — Northern Electric Co Baby Champ 5000 (2)
Ebay Seller radios10467 Item 140738916344

Baby Champ 5000; Northern Electric Co (ID = 1228146) Radio — Northern Electric Co Baby Champ 5000 (1)

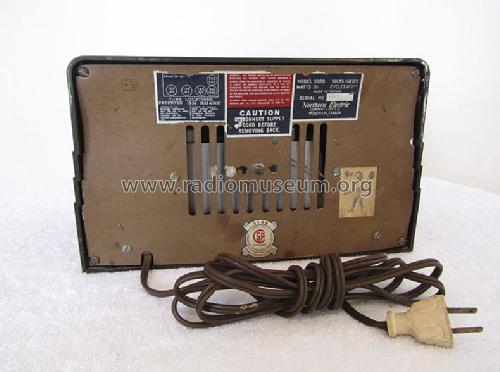

Baby Champ 5000; Northern Electric Co (ID = 1228148) Radio — Northern Electric Co Baby Champ 5000 (1)

Baby Champ 5000; Northern Electric Co (ID = 1412483) Radio — Northern Electric Co Baby Champ 5000 (1)

Baby Champ 5000; Northern Electric Co (ID = 1443430) Radio — Northern Electric Co Baby Champ 5000 (2)
By Courtesy Of EBAY User: poperodrigue

Baby Champ 5000; Northern Electric Co (ID = 1443432) Radio — Northern Electric Co Baby Champ 5000 (2)
By Courtesy Of EBAY User: poperodrigue

Baby Champ 5000; Northern Electric Co (ID = 1443434) Radio — Northern Electric Co Baby Champ 5000 (2)
By Courtesy Of EBAY User: poperodrigue

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
5

Valves / Tubes
12SA7 12SK7 12SQ7 35L6GT 35Z5GT

Main principle
Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

Tuned circuits
6 AM circuit(s)

Wave bands
Broadcast only (MW).

Power type and voltage
AC/DC-set / 110 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

Material
Bakelite case

from Radiomuseum.org
Model: Baby Champ 5000 [brown] - Northern Electric Co. Ltd.;

Shape
Tablemodel without push buttons, Mantel/Midget/Compact up to 14

Dimensions (WHD)
270 x 160 x 150 mm / 10.6 x 6.3 x 5.9 inch

Notes

Net weight (2.2 lb = 1 kg)
2.8 kg / 6 lb 2.7 oz (6.167 lb)

Circuit diagram reference
Radio College of Canada

Literature/Schematics (1)
Northern Electric Pages 89, 90, 102

Author
Model page created by Jeff Tranter. See "Data change" for further contributors.
