• Country
• Canada

• Manufacturer / Brand
• Northern Electric Co. Ltd.; Montreal, QC ; Belleville, ON

• Year
• 1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 120249

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12SA7 12SK7 12SQ7 35L6GT 35Z5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 110 - 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Bakelite case

• from Radiomuseum.org

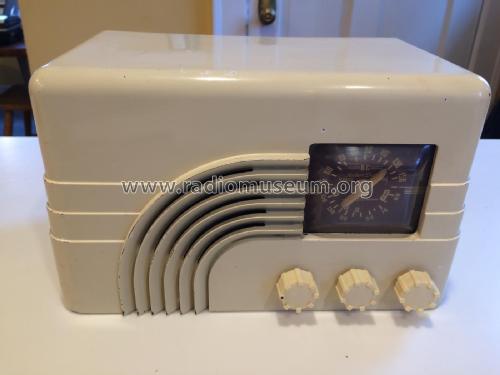

• Model: Baby Champ 5002 [ivory] - Northern Electric Co. Ltd.;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 10.5 x 6.5 x 6.5 inch / 267 x 165 x 165 mm

• Notes
• Propeller scale.

• Source of data
• -- Collector info (Sammler)

• Circuit diagram reference
• Radio College of Canada

• Literature/Schematics (1)
• Northern Electric Pages 92, 102

• Author
• Model page created by a member from A. See "Data change" for further contributors.

• Other Models

• Here you find 291 models, 246 with images and 254 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Northern Electric Co. Ltd.; Montreal, QC ; Belleville, ON
