• Year
  • 1952 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 175383

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 117 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • from Radiomuseum.org

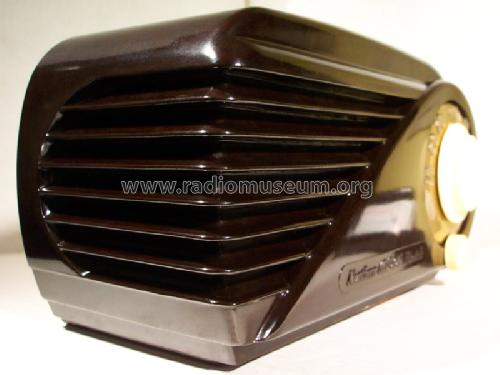

  • Model: 5508 [Run 3] - Northern Electric Co. Ltd.;
  • Notes
  • Built-in loop antenna.
  • Circuit diagram reference
  • Radio College of Canada
  • Literature/Schematics (1)

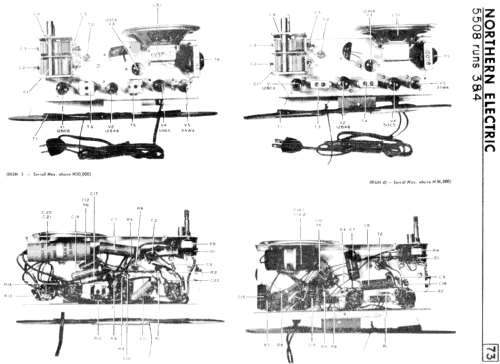

  • Northern Electric Suppl. Pages 72, 73
