• Country
• Canada

• Manufacturer / Brand
• Northern Electric Co. Ltd.; Montreal, QC ; Belleville, ON

• Year
• 1946/1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 98221

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12SA7 12SK7 12SQ7 35L6GT 35Z5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 110 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• Material
• Bakelite case

• from Radiomuseum.org

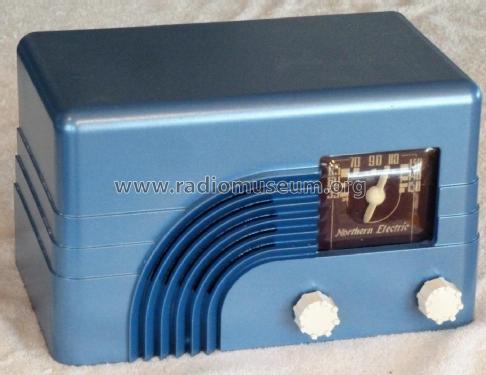

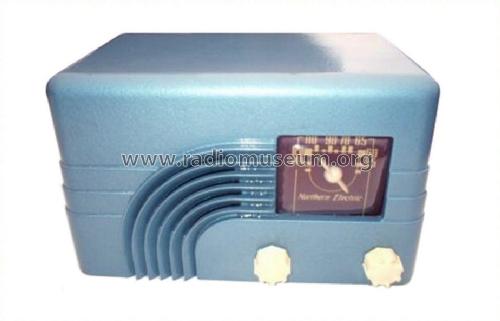

• Model: Baby Champ 5000 [blue] - Northern Electric Co. Ltd.;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes
• painted bakelite.

• Circuit diagram reference
• Radio College of Canada

• Literature/Schematics (1)
• Northern Electric Pages 89, 90, 102

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
