• Country
• Canada

• Manufacturer / Brand
• Northern Electric Co. Ltd.; Montreal, QC ; Belleville, ON

• Year
• 1946/1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 186690

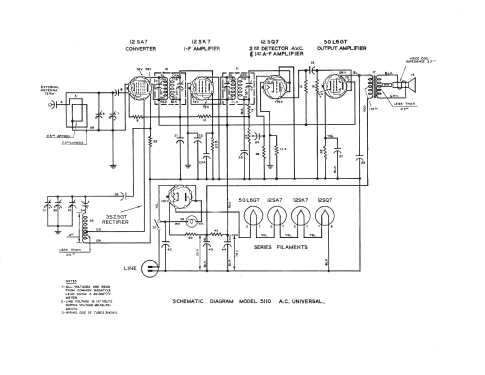

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12SA7 12SK7 12SQ7 50L6GT 35Z5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / Either DC or 25-60 Hz, 110-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Power out
• 2.1 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Baby Champ Rainbow 5110 [blue] - Northern Electric Co. Ltd.;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 10.632 x 6.25 x 6.5 inch / 270 x 159 x 165 mm

• Notes

• Painted bakelite. Available in Ivory, Gold, Green, Blue, and Rose. Has wire hank antenna.

• Circuit diagram reference
• Radio College of Canada

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
