- Country
- Canada
- Manufacturer / Brand
- Northern Electric Co. Ltd.; Montreal, QC ; Belleville, ON
- Year
- 1951 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 148212

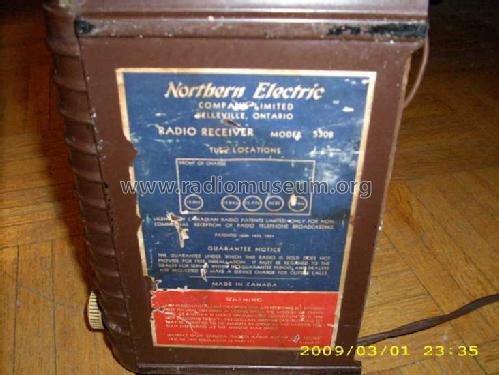

rear veiw of the set
bottom veiw of the set
Original Prospekt Northern Electric
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 110-125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Power out
- 1.5 W (unknown quality)
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org
- Model: Midge 5308 - Northern Electric Co. Ltd.;
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 8.75 x 6 x 6 inch / 222 x 152 x 152 mm
- Notes
- Loop antenna. Comes in 6 Colours: Ebony, Brown, Green, Yellow, Red and Ivory.
- Source of data
- -- Original prospect or advert
- Circuit diagram reference
- Radio College of Canada
- Literature/Schematics (1)
- Northern Electric Suppl. Pages 34, 35, 40
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
