• Country
• Canada

• Manufacturer / Brand
• Northern Electric Co. Ltd.; Montreal, QC ; Belleville, ON

• Year
• 1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 148216

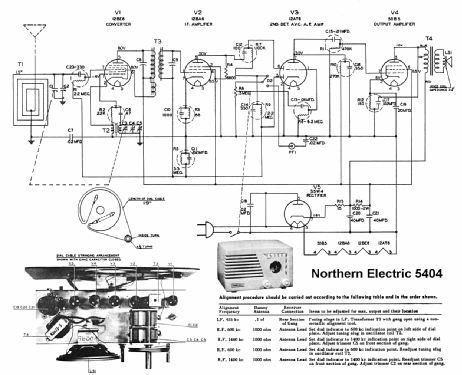

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AT6 50B5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Panda 5404 - Northern Electric Co. Ltd.;

• Shape
• Tablemodel, with any shape - general.

• Notes

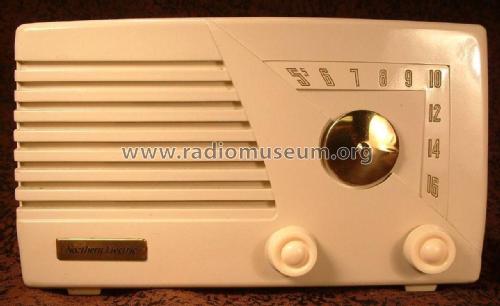

• A five-tube, Mantel Radio which operates on AC or DC power source.
  Built-In Loop Antenna, Socket with switch for changing from Radio to Phonograph.
  It comes in Ivory, Brown and Turquoise Plastic cabinet.

• Source of data
• -- Original prospect or advert

• Literature/Schematics (1)
• Radio College of Canada (RCC) (Supplement 22 page 51)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
