- Country
- Canada
- Manufacturer / Brand
- Northern Electric Co. Ltd.; Montreal, QC ; Belleville, ON
- Year
- 1924
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 184537
Collection privée (réf.: 744)
Northern Electric R4 Front View

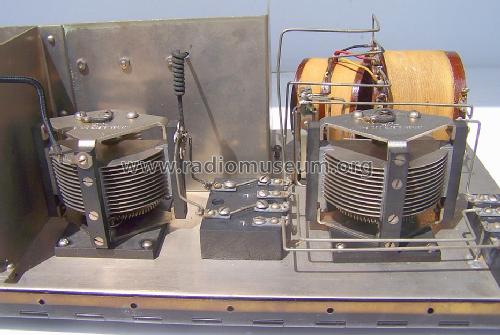

Northern Electric R4 Chassis Bottom View

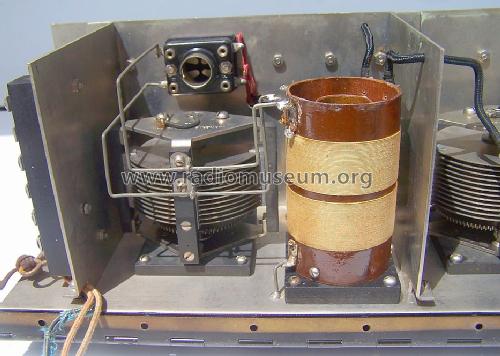

Northern Electric R4 Chassis LHS Bottom View
Northern Electric R4 Chassis LHS Rear View
Northern Electric R4 Chassis Rear View
Northern Electric R4 Chassis RHS Bottom View
Northern Electric R4 Chassis RHS Rear View
Northern Electric R4 Front Panel open
Northern Electric R4 Front Panel Controls
Northern Electric R4 Front Panel
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 30 kHz; 2 AF stage(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries / 7 & 22 & 45 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: R4 - Northern Electric Co. Ltd.;
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 585 x 280 x 200 mm / 23 x 11 x 7.9 inch
- Net weight (2.2 lb = 1 kg)
- 11.8 kg / 25 lb 15.9 oz (25.991 lb)
- Literature/Schematics (1)
- Murray, "The Early Development of Radio in Canada"
- Author
- Model page created by Alan Scott Douglas † 16.11.15. See "Data change" for further contributors.
