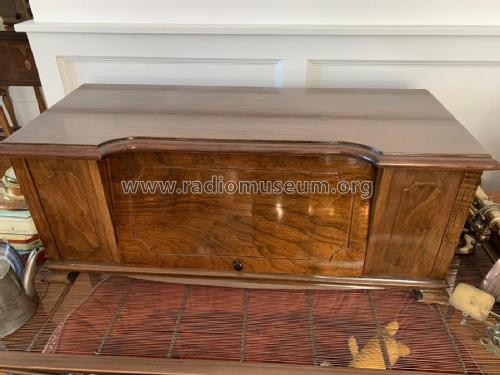

R-41

Northern Electric Co. Ltd.; Montreal, QC ; Belleville, ON

Data
Forum
Pictures
Collections

  • Year
  • 1925 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 329084

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage and/or dry batteries / 4.5 & 45 & 90 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: R-41 - Northern Electric Co. Ltd.;
  • Shape
  • Tablemodel, slant panel.
  • Dimensions (WHD)
  • 34.5 x 13.5 x 14.5 inch / 876 x 343 x 368 mm
  • Notes

  • This model is very similar to the Northern Electric manufactured Victor Talking Machine Co. Model R-40.

  • Mentioned in
  • The Early Development of Radio in Canada (Page 60)
  • Author
  • Model page created by Gerry O'Hara. See "Data change" for further contributors.
