- Country
- Italy
- Manufacturer / Brand
- Nova Radio (Novaradio), Officina Costruzioni Elettroacustiche; Milano
- Year
- 1950/1951
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 99695

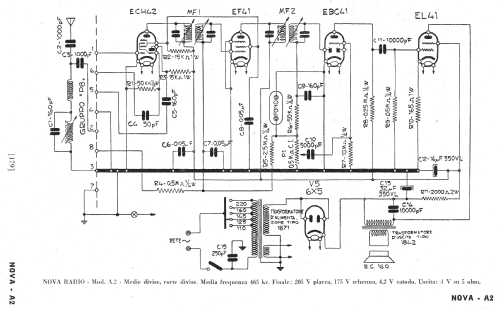

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 160; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 2.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: A2 [ECH42] - Nova Radio Novaradio, Officina
- Shape
- Tablemodel, low profile (big size).
- Notes
-
Serie "Voce d'oro". Gamme d'onda: medie divise, corte divise.
Ingresso fono.
Vedere anche modello Nova Radio A2 con ECH4
- Source of data
- Guida Pratica Antique Radio II (2000)
- Literature/Schematics (1)
- Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 179)
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
