• Country
• Italy

• Manufacturer / Brand
• Nova Radio (Novaradio), Officina Costruzioni Elettroacustiche; Milano

• Year
• 1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 114646

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12TE8 12SK7 12SQ7 35L6GT 35Z4GT

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• -Loudspeaker incorporated, but system not known. / Ø 15 cm = 5.9 inch

• Power out
• 2.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

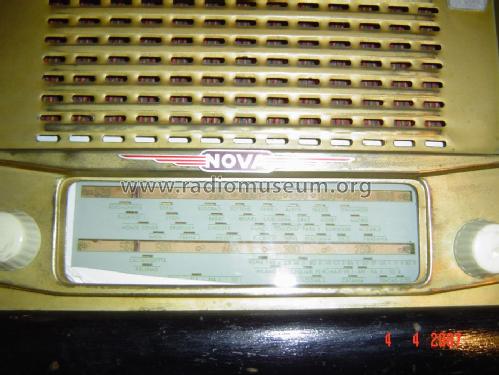

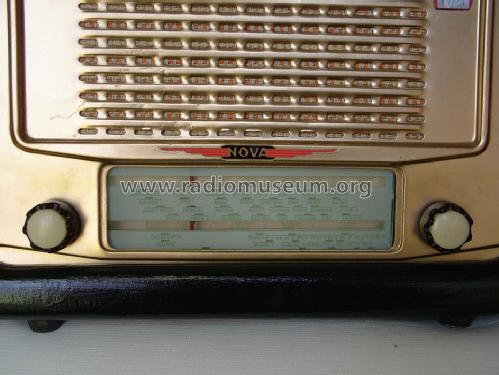

• Model: AR48/B - Nova Radio Novaradio, Officina

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 360 x 260 x 160 mm / 14.2 x 10.2 x 6.3 inch

• Net weight (2.2 lb = 1 kg)
• 3 kg / 6 lb 9.7 oz (6.608 lb)

• Price in first year of sale
• 23,900.00 ITL

• Source of data
• Guida Pratica Antique Radio II (2000)
