- Country
- Italy
- Manufacturer / Brand
- Nova Radio (Novaradio), Officina Costruzioni Elettroacustiche; Milano
- Year
- 1951/1952
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 237081
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 112; 125; 143; 160; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 4 W (undistorted)
- Material
- Wooden case
- from Radiomuseum.org

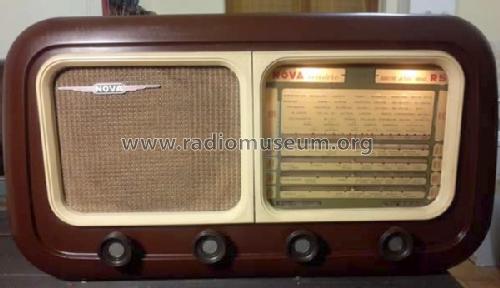

- Model: R5 - Nova Radio Novaradio, Officina
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 500 x 270 x 220 mm / 19.7 x 10.6 x 8.7 inch
- Notes
-
5 gamme d'onda.
Regolatore di tono. Ingresso fono.
- Mentioned in
- Guida Pratica Antique Radio IV (2001)
- Literature/Schematics (1)
- -- Schematic (Il Radio Libro D.E. Ravalico 13a edizione Hoepli editore 1952.)
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
