- Country
- Italy
- Manufacturer / Brand
- Nova Radio (Novaradio), Officina Costruzioni Elettroacustiche; Milano
- Year
- 1950
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 176229

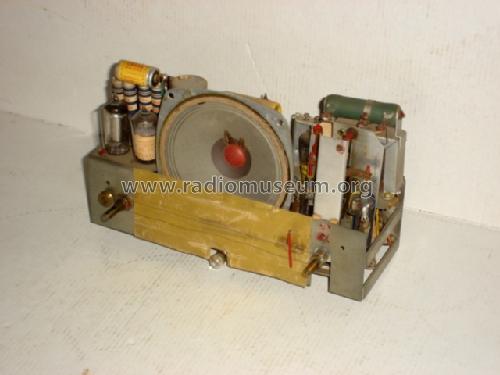

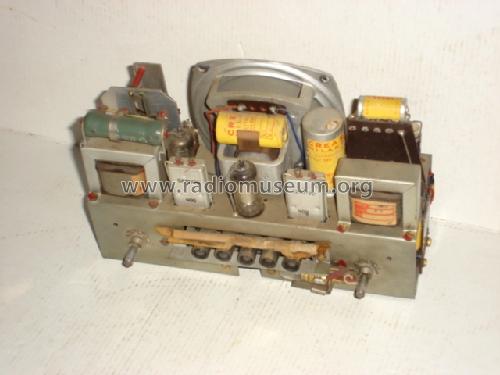

Telaio apparecchio principale
Telaio apparecchio principale
- Number of Tubes
- 4
- Number of Transistors
- Semiconductors
- Selenium-Rectifier
- Main principle
- Superheterodyne (common); something special ? Please give information (notes)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Line (AC, UC or DC not known) / 125-160 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Trio - Nova Radio Novaradio, Officina
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 240 x 160 x 110 mm / 9.4 x 6.3 x 4.3 inch
- Notes
- Apparecchio avente triplice funzione: Radio - Interfono - Amplificatore telefonico. Poteva collegarsi fino a 5 interfono. L'apparecchio principale contiene una radio ad Onde Medie, i secondari contengono un altoparlante che funge da microfono, quando si parla. I vari pezzi, tra loro, erano collegati con un cavo multifilare.
- Author
- Model page created by Antonio Maida. See "Data change" for further contributors.
- Other Models
-
Here you find 104 models, 71 with images and 65 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Nova Radio (Novaradio), Officina Costruzioni Elettroacustiche; Milano
