- Country
- Italy
- Manufacturer / Brand
- Nova Radio (Novaradio), Officina Costruzioni Elettroacustiche; Milano
- Year
- 1960 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 232769
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 127; 140; 175; 230 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org

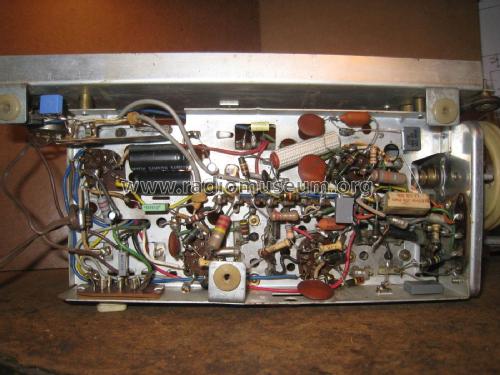

- Model: Vocedoro NV 9071 - Nova Radio Novaradio, Officina
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 375 x 185 x 140 mm / 14.8 x 7.3 x 5.5 inch
- Notes
-
Altoparlante elittico 250 x 60 mm - apparecchio uguale al Magnadyne MD6071
- Author
- Model page created by Maurizio Nicolussi. See "Data change" for further contributors.
