• Country
• Belgium

• Manufacturer / Brand
• Novak (also Pontiac); Bruxelles

• Year
• 1960 ??

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 187683

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 0

• Valves / Tubes

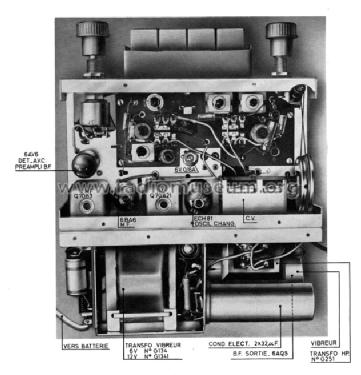

• ECH81 6BA6 6AV6 6AQ5

• Main principle
• Superheterodyne (common); ZF/IF 450 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

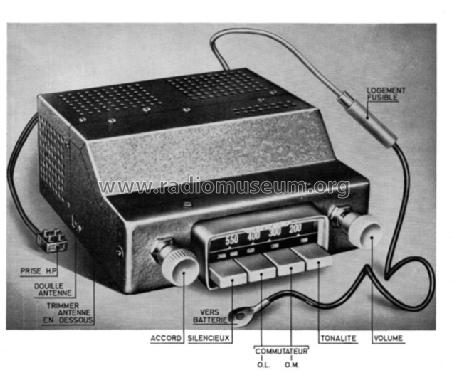

• Model: 578 - Novak also Pontiac; Bruxelles

• Shape
• Chassis only or for «building in»

• Price in first year of sale
• 2,500.00 BFr

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Dirk Bladt. See "Data change" for further contributors.
