• Country
• Belgium

• Manufacturer / Brand
• Novak (also Pontiac); Bruxelles

• Year
• 1948 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 274843

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UCH21 UCH21 UBL21 UY1N

• Main principle
• Superheterodyne (common); ZF/IF 480 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110; 130; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Various materials

• from Radiomuseum.org

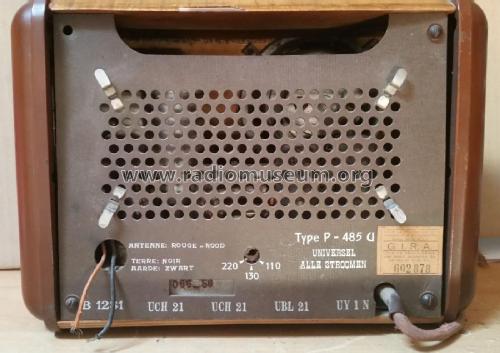

• Model: Pontiac P485U - Novak also Pontiac; Bruxelles

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes

• No tone control. A wire antenna is coiled on the backpanel.

  Attention: The chassis is connected to the mains.
