• Country
• Belgium

• Manufacturer / Brand
• Novak (also Pontiac); Bruxelles

• Year
• 1953/1954

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 80767

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes

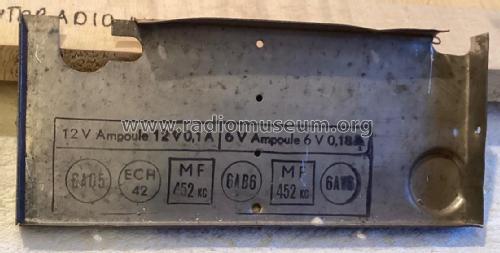

• ECH42 6BA6 6AV6 6AQ5

• Number of Transistors

• Semiconductors
• Vibrator Selengleichrichter

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6 / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: Record 548 - Novak also Pontiac; Bruxelles

• Shape
• Chassis only or for «building in»

• Notes

• Car radio with 2 wave bands. Tone control (2 positions), special noise suppressor.

  There is also a version for 12 Volt supply. A swith-over is not possible. The schematic shows the filament connection for 6 and 12 Volt. The power supply block will have to be replaced also.

  Also available as package, including radio, speaker, antenna, installation, noise suppression etc for Fr. 2550, for the following cars:

  • Austin
  • Citroen 2CV
  • DKW
  • Hillam
  • Morris
  • Opel Rekord
  • Renault 4CV
  • Skoda
  • Standard
  • Volkswagen
  • Ford Anglia, Consul, Prefect, Taunus, Vedette, Zephyr

• Price in first year of sale
• 1,995.00 BEF

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Georges Van Campenhout † 28.4.22. See "Data change" for further contributors.
