- Country
- Belgium
- Manufacturer / Brand
- Novak (also Pontiac); Bruxelles
- Year
- 1959
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 86171
Benötigte Batterie 6 Volt

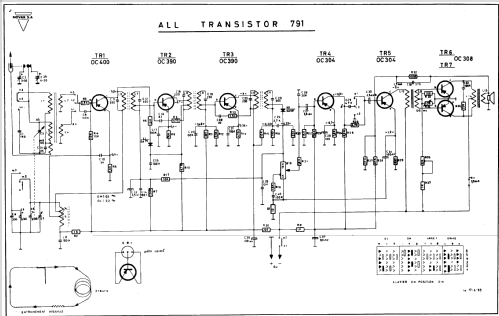

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); 3 AF stage(s)
- Tuned circuits
- 8 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Dry Batteries / 1 x 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: 791 - Novak also Pontiac; Bruxelles
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 310 x 240 x 103 mm / 12.2 x 9.4 x 4.1 inch
- Notes
-

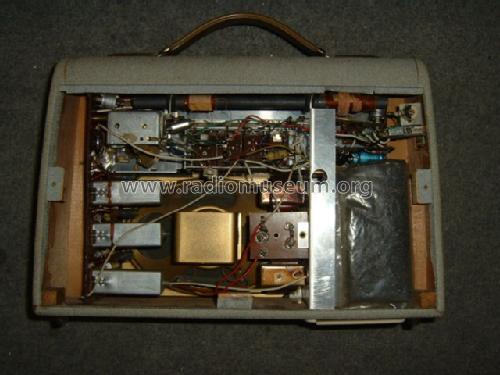

Transistors of brand Intermetall; driver and output transformer; long ferrite antenna (Ø 9,2 mm, length 203 mm), input for external antenna; tone control button.
- Price in first year of sale
- 3,250.00 BEF
- Mentioned in
- -- Original prospect or advert
- Author
- Model page created by Georges Van Campenhout † 28.4.22. See "Data change" for further contributors.
